ewelink module

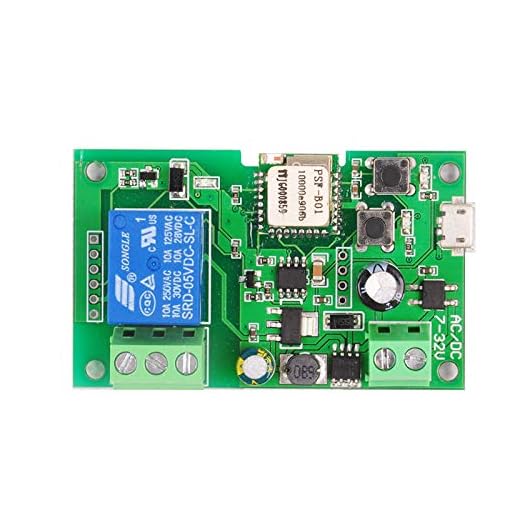

Visión general:
Este interruptor inalámbrico es un dispositivo asequible y de bajo costo que permite a los usuarios encender / apagar de forma remota dispositivos conectados de diferentes tipos y marcas a través de la aplicación EWeLink desde cualquier lugar del mundo, y al configurar los horarios de sus
dispositivos, puede vida despreocupada. Es compatible con el modo de marcha lenta / auto-bloqueo.
Especificaciones:
Voltaje de entrada: DC5V (fuente de alimentación del puerto USB más conveniente)
Voltaje de trabajo: 5V /7-32V
Soportes para controlar diferentes rangos de voltaje.
Consumo de cartón: <1W
Corriente en espera: 80mA
Corriente de entrada máxima: 10A
Potencia máxima: 2000W
Modo de trabajo: avance lento / autobloqueo
Estándar inalámbrico: 2.4GHz, 802.11 b / g / n
Aplicación móvil: EWeLink en Android / IOS
Aplicación: control de acceso, encender PC, puerta de garaje, etc.
Temperatura de funcionamiento: -20 grados a +70 grados Humedad: 5% -90% HR, sin condensación
Tamaño del artículo: 67 * 43 * 17 (mm)
Peso del artículo: 26g
Información del paquete:
Tamaño del paquete: Aprox. 7.5 * 4.3 * 2.8 cm / 3 * 1.7 * 1.1in
Peso del paquete: Aprox. 33 g / 1.2 oz
Lista de empaque:
1 * Módulo de interruptor inalámbrico

Features:

This RF Bridge can convert most of the 433MHz RF Remote Controls to WiFi Wireless. Making your 433MHz RF controlled appliances smarter.

It can be used for most of the 433MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc.

Works perfectly for Amazon for Alexa,You can directly ask for Amazon for Echo/for Echo Dot/for Amazon Tap to control it.

Support set timers to open/close device at a fixed time.

After adding the RF wireless Bridge for iOS/for Android App for eWeLink , you can add up to 4pc 1-4 buttons 433MHz (4 pcs 433MHz controls not allowed exceed total 16 buttons) Wireless RF Remotes to the RF Bridge device. And Control 433MHz RF devices on the App through WiFi/2/3/4G network.

Descriptions:

Sonoff RF Bridge Universal Remote Control is a compact and easy-to-use device that allows you to monitor and control your homes electronic devices from anywhere.

Support most of home appliances,Volume gate, TV, TV Box, Air-conditioning, Loudspeaker Box, Motor Curtain, wall switch light, etc.

No matter IR remote, or RF remote, only one smart phone can control everything.

Specification:

Material: ABS

Size: 62*62*20mm

Supports fixed code 433 frequency: PT2260, PT2262, PT2264, EV1527, etc.

Not support to learn rolling code and dynamic code

Wireless Standard: WiFi 2.4GHz

Supported Radio: 433MHz RF

Power Supply: USB 5V

Package included:

1 x RF Bridge 433

Notes:

Please allow 0-2mm error due to manual measurement, thanks for understanding.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!

Features:
Supports WiFi network
Supports remotely turn on or off connected appliance/light
Quickly add device, 20 seconds required only
One time pairing supports adding up to 10 devices
Support Alexa / Tmall Genie / Google Home voice control
Can still control via phone even there is no wifi, or the network suddenly breaks
Stable signals and fast response
Can set up to 100 sets of timers
Specification:
Item Name: Smart Switch
Control Mode: Phone APP
Material: PC Fire-resistant Material
Product Size: 88*39*23mm
Gang: 1
Wireless Standard: 802.11 b/g/n 2.4GHz
Power Consumption: ?0.5W
Control Distance: infinitely far
Operating Temperature: -10°C to 60°C
Input: AC 110V or AC 220V
Max. Current: 10A
Max. Power: 2200W
Terminal Platform: Android / IOS
Cautions:
1. Sing gang load power is 10A/2200W.
2. The output and input wire must be correctly connected.
3. Must turn-off circuit during installation, pay attention to safety.
Note:
Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
Thank you for your understanding, nice day!
Package Includes:
1 x Smart Switch
1 x User Manual
