monitor 5 pollici raspberry

Features

1. 800x480 high hardware resolution 5inch Resistive Touch Screen LCD, HDMI interface
2. Supports Raspberry Pi Model 3B+/3B/2B/B+/B/3A+/A+/Zero/Zero W
3. Supports BB Black, comes with Angstrom image
4. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
5. When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
6. When work with other mini-PCs, driver is required and should be developed by users
7. HDMI interface for displaying, USB interface for touch control
8. Backlight can be turned off to lower power consumption
9. Standard HID protocol, easy to be integrated into your system

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

PACKAGE CONTENT

1. 5inch HDMI LCD (B) x 1
2. HDMI cable x 1
3. Touch pen x 1
4. USB type A plug to micro B plug cable x 1
5. RPi LCD screws pack (4pcs) x 1

Development Resources

Wiki :www.waveshare.com/wiki/5inch_HDMI_LCD_(B)?Amazon

FAQ

Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

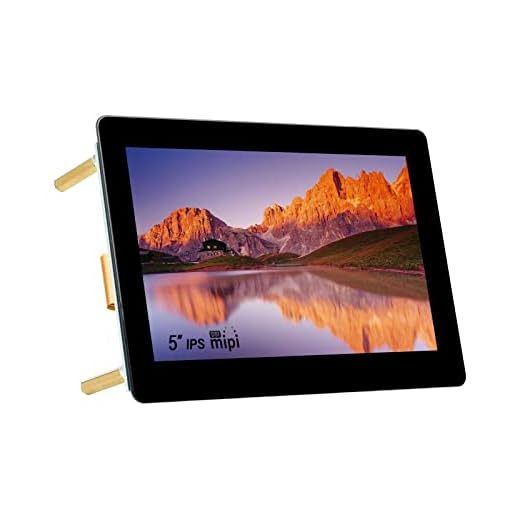

Only Use DSI interface Connects to the Raspberry Pi board include power

10 finger Capacitive touch(raspberry pi only use 1 finger);

The refresh frequency about 60HZ

Physical resolution 800*480 ,24-bit colour，better display

Strong anti-interference

Ultra low power ,ultra long distance lossless transmission,The screen will automatically sleep when it is not in use

The display size have changed from 800×480 to 1920×1080

Package include: 1x 5 Inch DSI Touch LCD Screen for Raspberry Pi

Product Dimensions 147*103*31mm

PACKAGE CONTENT
7inch HDMI LCD (C) x 1
HDMI cable x 1
USB type A plug to micro B plug cable x 1
RPi screws pack (4pcs) x 1

Rev2.1 Feature
Upgrade to IPS screen, wider viewing angle, more clear displaying
Standard HID protocol, easy to be integrated into your system
For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Supports Raspberry Pi
Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
Backlight can be turned off to lower power consumption

Why the LCD still doesn't work with the provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

Il Eyoyo 4K Monitor è E5. Questa è la scelta migliore di un monitor per telecamera DSLR, videocamera e stabilizzatore per gimbal.
E5 ha una risoluzione eccellente di 1920 x1080 e ha una gamma di colori ITU-R BT.709, ma questo monitor da 5 pollici ha solo 118 g, è abbastanza leggero e rappresenta la comodità assoluta per un cameraman.
Inoltre, la nostra E5 può essere compatibile con due diverse batterie al litio (batteria F970 e LP-E6) ma non è necessario un altro piatto della batteria, solo l'installazione direttamente, senza alcuno smontaggio, si riduce un sacco di problemi.

Nota: questo monitor DSLR da campo da 5 pollici E5 non include alcuna batteria. È possibile alimentarlo tramite l'adattatore di corrente CC 12V o la batteria che si adatta alla piastra della batteria F970 e LP-E6.


Specifiche:
Schermo: 5 '' 8 bit IPS
Risoluzione fisica: 1920x1080 (441ppi)
Rapporto di formato: 16: 9
Luminosità: 400cd / m2
Contrasto: 1000: 1
Angolo di visione: 170 ° / 170 ° (H / V)
Ingresso HDMI: 1
Uscita HDMI: 1
Altoparlante audio: 1
Scanalatura del telefono dell'orecchio: 1
Corrente di alimentazione: 600 mA (12V)
Tensione di ingresso dell'alimentazione: DC 7-24V
Supporto batteria di alimentazione: Sony F970 / Canon LP-E6 (non incluso)
Consumo energetico: inferiore a 9W
Temperatura di funzionamento: -20 ℃ ~ 50 ℃
Temperatura di stoccaggio: -30 ℃ ~ 70 ℃
Dimensione (LWD): 129,6x80,1x23,6mm
Peso: 118 g
4K HDMI: 4096x2160 24p / 3860x2164 (23/24/25/29 / 30p

Pacchetto :
1x monitor della fotocamera
1x parasole pieghevole
1x staffa multifunzione
1x cavo HDMI A / C
1x manuale

5 inch Resistive Touch Screen LCD, HDMI interface, supports various systems

Description
1.Desigh for any revision of Raspberry Pi/ BB Black/Banana Pi / Banana Pro Mainboard/ Raspberry Pi 2/3 Model B+/B
2.For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
3.Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
4.When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
5.Display with HDMI interface , touch control with USB interface；Backlight can be turned off to lower power consumption
6.For other mini-PCs, driver is required and should be developed by users;Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
7. Standard HID protocol, easy to be integrated into your system

Package Contain
5inch HDMI LCD (B) x 1
HDMI cable x 1
Touch pen x 1
USB type A plug to micro B plug cable x 1
RPi LCD screws pack (4pcs) x 1

Specification:
Tipo di elemento: schermo
Dimensioni: 5,0 pollici
Risoluzione: 800x480
Tocco: tocco resistivo a 4 fili
Dimensioni: ca.121x78mm / 3.36x3.07in

Elenco dei pacchetti:
1x Touch Screen
1x accessori pacchetto
1x Touch Pen
1x adattatore HDMI

Protection Case with 3x Heat sinks:
Designed SPECIALLY for Raspberry Pi 3 Model B; Full access to all controls and features
The protective case consists of five-piece PMMA enclosure that snaps together around Raspberry Pi 3 Model B，Provides the best available protection/accessibility for Model B，Protect and secure your Raspberry Pi from shocks, scratches and dust.
Description:
LCD Type: TFT
LCD Interface: SPI (supports up to 125MHz SPI input)
Touch Screen Type: Resistive
Touch Screen Controller: XPT2046
Colors: 65536
Resolution：320*480 (Pixel)
power consumption: 120ma
Working temperature（℃）: -20~70
Package Contains:
1x 3.5inch LCD for Raspberry Pi
1x protective case
3x Heat sinks
1x stylus
1x instruction
NOTE: We have tutorials and software for you to download, please scan the QR code on the instruction. Or you could look through the Q&A, we attach the link for you download.

* TOOGOO e' un marchio registrato. Solo il venditore autorizzato da TOOGOO puo' vendere sotto la lista di TOOGOO. I nostri prodottimiglioreranno la vostra esperienza di ispirazione senza pari.

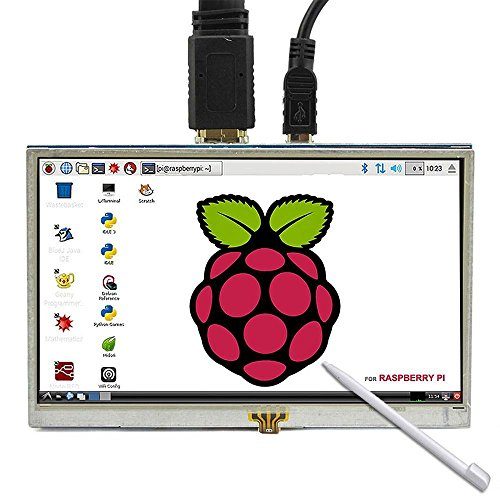

TOOGOO(R) Schermo LCD Touch Screen HDMI 5 pollici Raspberry Pi 3 Monitor LCD HDMI 800x480 per Banana Pi Raspberry Pi 3/2 Modello B / B +
personalizzato: si'
Tensione di alimentazione: 110/220
Applicazione: raspberry pi
Risoluzione fino a 800 x 480
Controllo touch resistivo USB
Supporta Raspbian, Ubuntu Mate, NOOBS con RaspberryPi
Supporta Debian, Angstrom con BeagleBone
Retroilluminazione del consumo ULP (Ultra Low Power)
Peso: 120 g
colore: colore della foto
Materiale: metallo
dimensioni: 133mm x 76mm x 7mm
Touch screen: 5 pollici
Contenuto del pacco:
LCD HDMI da 1 * 5 pollici
1 * connettore HDMI
1 * penna touch
1 * cilindro di rame
Solo il contenuto del pacchetto di cui sopra, altri prodotti non sono inclusi.
Nota: Le riprese di luce e schermo differente possono causare il colore dell'articolo nella foto un po' diverso da quello reale. L'errore di misura consentito e' di meno o piu' di 1-3 cm.
