raspberry pi 3 case with screen

Caratteristiche

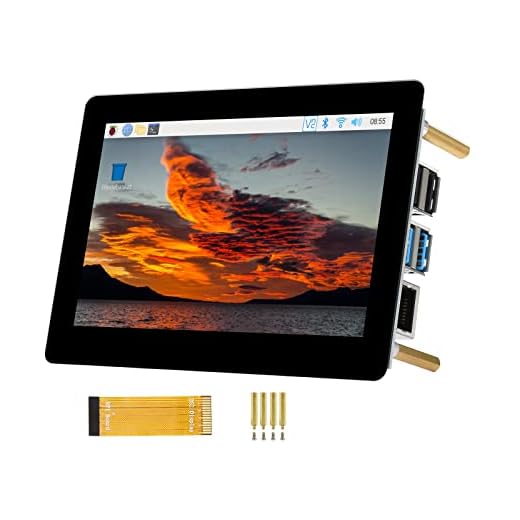

This 5 inch TFT display with touch function is a mini panel-mountable HDMI monitor. It's small and simple, and the shape makes it easy to attach to a electronic product. The touch screen resolution is 800x480 and it has large view angle. It is not only work with raspberry pi, also can work with all HDMI device, but the touch function just for raspbian and Ubuntu systems.
Features:
A good solution for those seeking for a bigger resolution display
Designed for Raspberry Pi, an ideal alternative solution for monitor
800×480 resolution, better display
Good touch response
Large viewing angle
Fast response time
For Raspberry Pi B+/2B Raspberry Pi 3B
With detail tutorial
Specifications:
5 inch TFT Resistive touch screen display, 800x480 Resolution
HDMI input
Usb touch and power, 5V
Lcd driver IC: ILI9486L
Refresh rate：60HZ
Lcd Size ：120mm*78mm
Package list:
5 inch Touch LCD Display x1
HDMI connector x1
Touch pen x1
Protective case x1

Descrizioni del prodotto:

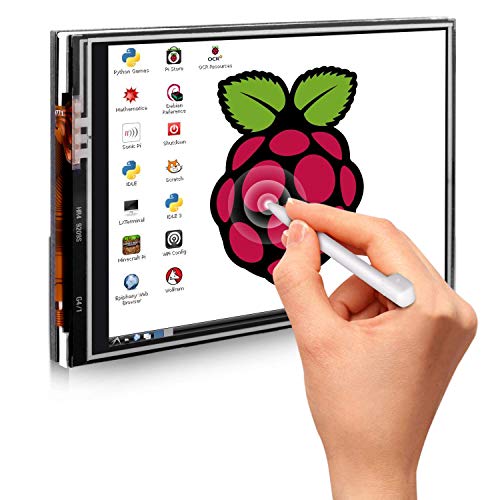

3.5 inch LCD panel di immagini, Studiato per Raspberry Pi, una soluzione ideale alternative per monitor
Per qualsiasi tipo di revisione di Raspberry Pi (direttamente steckbar) Driver disposizione messi (direttamente funziona con benutzerdefinierten Raspbian)

Risoluzione 320 X 480, migliore display, Per sistema Raspbian, permette il sistema
Riprodurre video (per formati Multi, MP4 e così via)
Prendere le foto per fotocamera Touchpen (fino a 17)
Tastiera per software (sistema interaktion senza tastiera/mouse)

Protezione valigetta con 3 X dissipatore appositamente progettato per Raspberry Pi 3 modello B; pieno accesso a tutti i controlli e featuren
La custodia è composto da impianto di fuenfteiligem PMMA, il per il Raspberry Pi 3 modello B herumschnappt.
Include i migliori disponibili protezione/accessibilità per modello B, proteggere e garantire il tuo Raspberry Pi da urti, graffi e polvere

Contenuto della confezione:
1 X 3.5 inch Touch dello schermo LCD per Raspberry Pi (tutti i versione)
1 X pennino
1 X protezione portabagagli
3 X dissipatore di calore
Key parameters:
Tipo: TFT LCD
Retroilluminazione: LED
Colore: 65536
Aspect Ratio: 8: 5
Risoluzione: 320 * 480 Dots.
Consumo di energia: TBD
Sfondo corrente di illuminazione: TBD
Note: Raspberry Pi 3 Model B non è incluso
Abbiamo Tutorials e software herunterzuladen per voi, non esitate a contattarci via e-mail, per ottenere tutte le informazioni.

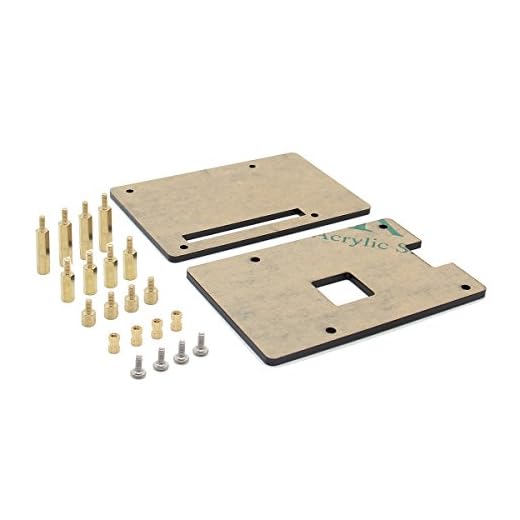

Protection Case with 3x Heat sinks:
Designed SPECIALLY for Raspberry Pi 3 Model B; Full access to all controls and features
The protective case consists of five-piece PMMA enclosure that snaps together around Raspberry Pi 3 Model B，Provides the best available protection/accessibility for Model B，Protect and secure your Raspberry Pi from shocks, scratches and dust.
Description:
LCD Type: TFT
LCD Interface: SPI (supports up to 125MHz SPI input)
Touch Screen Type: Resistive
Touch Screen Controller: XPT2046
Colors: 65536
Resolution：320*480 (Pixel)
power consumption: 120ma
Working temperature（℃）: -20~70
Package Contains:
1x 3.5inch LCD for Raspberry Pi
1x protective case
3x Heat sinks
1x stylus
1x instruction
NOTE: We have tutorials and software for you to download, please scan the QR code on the instruction. Or you could look through the Q&A, we attach the link for you download.

Parametri principali:
Tipo: TFT LCD
Interfaccia LCD: SPI
Tipo di Touch Screen: resistivo
Tocco screen controller: XPT2046
COLORI: 65536
Retroilluminazione: LED
Risoluzione: 320 * 480 (pixel)
Proporzioni: 2: 3
Potenza assorbita: TBD
Retroilluminazione corrente: TBD
Temperatura di esercizio (& # x2103;):. TBD

Il pacchetto include
1 * 3,5 pollici touch screen
1 * Custodia per Raspberry Pi 2 e pi B +
1 * Raspberry Pi dissipatore di calore - Set di 3

1024×600, 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

7inch HDMI LCD (C) Features

• Latest Version -IPS screen, wider viewing angle, more clear displaying, better touch effects, stronger anti-interference ability.
• Standard HID protocol, easy to be integrated into your system
• Adding the VCOM adjustable resistance and EMC circuit
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable;USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_ (C)?Amazon

Note

1.If the LCD flickering or has ghost problem , please check if the config file was configured correctly. Or adjust the potentiometer on the backside , and after the screen can display the desktop, rotate the resistor until it can get the best display of desktop.Then please leave the screen for a while,waiting for the ghost to disappear (may take several hours)

2. if there are some red lines on the edge of the screen,please adjust the config.txt file by adding [hdmi_drive=1] into the end of code.After that please power off the screen and put it aside for a few hours to avoid the flickers.

800x480, 4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi

Features

• 800x480 high hardware resolution
• Resistive touch control
• IPS technology, high quality and perfect displaying from very wide viewing angle
• Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
• Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
• Backlight can be turned off to lower power consumption

FAQ

1.What are the power requirements?

When working with 5V input, the current is about 200mA with back light on and 30mA with back light off.

2.It seems not to work as a computer monitor for a Windows PC, right?

This LCD is used for portrait display. You can set the orientation on Windows: desktop right click --> display settings --> orientation: portrait.

3.Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

Packing List

1. 4inch HDMI LCD x 1
2. HDMI connector x 1
3. Touch pen x 1
4. RPi screws pack (4pcs) x 1
5. Quick start sheet x1

Development Resources

Wiki :www.waveshare.com/wiki/4inch_HDMI_LCD?Amazon

IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Comes with EU plug power adapter

Description
1. IPS screen,1280×800 high resolution
2. Capacitive touch control, supports up to ten-points touch
3. When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
4. When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
5. Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
6. Supports BB Black, comes with Angstrom image
7. HDMI interface for displaying, USB interface for touch control
8. Supports 5-level backlight adjustment

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case
Material : high quality black Acrylic
Comes with back holder, 45° tilt angle
Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, BB Black, Banana Pi

Package Content
10.1inch HDMI LCD (B) (with case) x 1
Back holder x 1
Spare screws x 1
HDMI cable x 1
USB type A plug to micro B plug cable x1
Power adapter EU standard USB output x1

Raspberry Pi 3 Starter kit include tutto ciò che ti serve per andare fuori dalla scatola. Il kit include: più recente Raspberry Pi 3 Model B (64bit Quad Core, 1 GB di RAM), classe 10 MicroSD (pre-imaged con NOOBS), ufficiale Raspberry Pi 5.1 V 2.5 a alimentazione internazionale, ufficiale Raspberry Pi 3 custodia

Descrizione:
Attenzione: Raspberry Pi non inclusa

Lo stesso mirror supporta raspberry pie, seconda generazione, tipo B PI3/PI2/b/B+/A/A+, evitate di comprare ingombranti monitor HDMI. Risoluzione fino a 1920*1080, visualizza le immagini più chiaramente. Fornisce un'interfaccia uomo-macchina comoda per raspberry pie, si può fare fai da te in ogni momento, ovunque con l'uso di una power bank. Usate il nuovo raspberry pie UI, il nuovo kernel 4.9.17! Trasposone umanizzato!
Metodo d'uso: per favore fare riferimento alle istruzioni su CD o contattare il nostro servizio post vendita.

La Confezione Contiene:
1x LCD 3.5 pollici per Raspberry Pi
1x Touch Pen
1x Adattatore U
1x CD con istruzioni
1x Custodia Protettiva
Consigli: lo schermo da 3.5 pollici HDMI LCD supporta la riproduzione di videogiochi fino a 1920*1080, con Reresh rate di 60 frame al secondo! , MA non è un pannello LCD 1080P.
