raspberry pi 3 touch screen kit

Technical Specification: - 7" Touchscreen Display. - Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) - Viewable screen size: 155mm x 86mm - Screen Resolution 800 x 480 pixels - 10 finger capacitive touch. - Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port. - Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi. N.B. Will require the latest version of Raspbian OS to operate correctly. Features: The 7" Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi's GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi's.Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse. Kit Contents: - 7" Touchscreen Display - Adapter Board - DSI Ribbon cable - 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display - 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)

IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Comes with EU plug power adapter

Description
1. IPS screen,1280×800 high resolution
2. Capacitive touch control, supports up to ten-points touch
3. When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
4. When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
5. Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
6. Supports BB Black, comes with Angstrom image
7. HDMI interface for displaying, USB interface for touch control
8. Supports 5-level backlight adjustment

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case
Material : high quality black Acrylic
Comes with back holder, 45° tilt angle
Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, BB Black, Banana Pi

Package Content
10.1inch HDMI LCD (B) (with case) x 1
Back holder x 1
Spare screws x 1
HDMI cable x 1
USB type A plug to micro B plug cable x1
Power adapter EU standard USB output x1

Progettato per Raspberry Pi, una soluzione alternativa ideale per controllare e verificare a schermo le impostazioni del Raspberry Pi (collegabile direttamente)
Provvisto di Driver (funziona direttamente con un Raspbian)
Risoluzione 320x480, miglior display.
Supporta i sistemi Raspbian, abilita il tuo sistema
Supporta tastiere software (l'interazione con il sistema senza tastiera/mouse)
Connessioni di alta qualità placcati d'oro.

Parametri chiave:
Interfaccia LCD: SPI
Tipo LCD: TFT
Retroilluminazione: LED
Colori: 65536
Aspetto: 8:5
Risoluzione: 320x480 punti
Consumo energetico: TBD
Corrente della retroilluminazione: TBD
Micro SDHC 16GB Classe 10 TF Memory Card
Velocità scheda: SDHC 16GB Class 10
Memoria flash di alta qualità

Contenuto della confezione:
-Display touchscreen da 3.5" comprensivo di pennino touch (1x)Tips for driver:
After install the driver that could get the touch function work.
1.)Step1, Install Raspbian official mirror
a)Download Raspbian official mirror（latest version）: https://www.raspberrypi.org/downloads/
b)Use"SDFormatter.exe"to Format your TF Card
c)Use"Win32DiskImager.exe" Burning mirror to TF Card
2.) Step2, Clone my repo onto your pi
sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
3.)Step3, According to your LCD's type, excute:
In case of 3.5" LCD
sudo ./LCD35-show
If you need to switch back to the traditional HDMI display sudo ./LCD-hdmi
Wait a few minutes,the system will restart automaticall , enjoy with your LCD

Progettato per Raspberry Pi, una soluzione alternativa ideale per monitor
Supporta la revisione di Raspberry Pi (directly-pluggable)
Driver fornito (funziona con personalizzato Raspbian direttamente)
320 x 480 Risoluzione, migliore visualizzazione
Supporta Raspbian, sistema permette il sistema
Supporto tastiera (tastiera/mouse interazione del sistema senza software)
Alta qualità immers superficie placcatura oro
Parametri:
LCD interfaccia: SPI
Tipo di schermo: TFT
Retroilluminazione: LED
Colori: 65536
Rapporto di aspetto: 8: 5
Risoluzione: 320 * 480,
Consumo di energia: tbd
Retroilluminazione corrente: tbd
Custodia di protezione con 3 x dissipatori
Progettato appositamente per Raspberry Pi 3 Model B; accesso completo a tutti i comandi e le funzioni
Per proteggere il vostro Raspberry Pi da urti, graffi e polvere.
La confezione contiene:
1 x pollici LCD touch screen per Raspberry Pi
1 x penna di tocco
2 x Custodia di protezione
3 x dissipatori
1 x 16 mm copper pillar
Nota:
Raspberry Pi 3 modello B non incluso

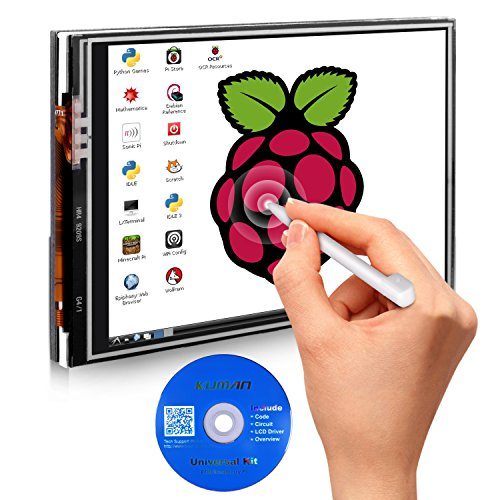

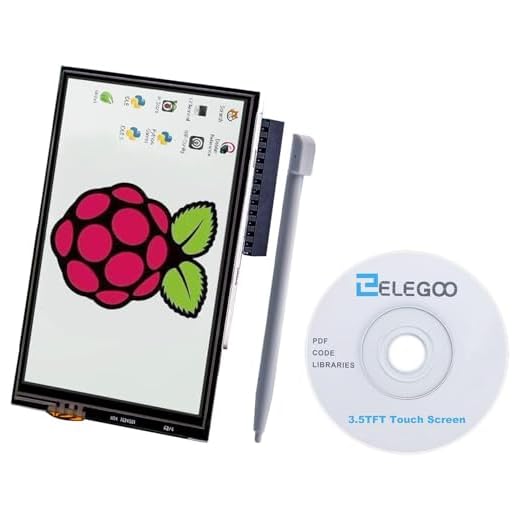

3.5inch LCD panel description
Designed for Raspberry Pi, an ideal alternative solution for monitor
Supports any revision of Raspberry Pi (directly-pluggable)
Driver provided (works with custom Raspbian directly)
320×480 resolution, better display
Supports Raspbian system, enables your system
play videos (supports multi formats, MP4 and so on)
take photos by touch pen (up to 17 camera modes)
Support software keyboard (system interaction without keyboard/mouse)

Key Parameters
LCD Interface: SPI
LCD Type: TFT
Backlight: LED
Colors: 65536
Aspect Ratio : 8:5
Resolution: 320*480 DOTS
Power Consumption: TBD
Backlight Current: TBD

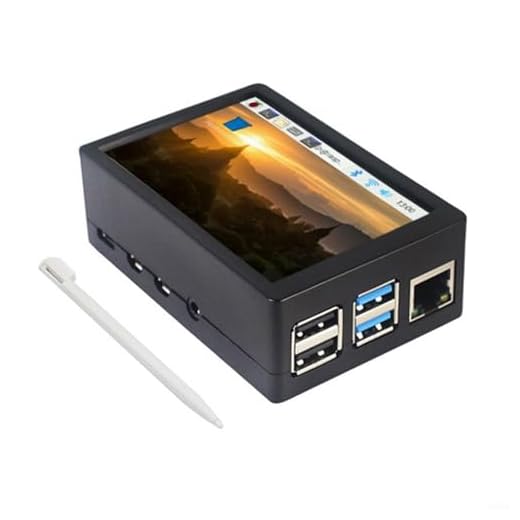

Protection Case with 3x Heat sinks
Designed SPECIALLY for Raspberry Pi 3 Model B; Full access to all controls and features
The protective case consists of five-piece PMMA enclosure that snaps together around Raspberry Pi
3 Model B，Provides the best available protection/accessibility for Model B，Protect and secure
your Raspberry Pi from shocks, scratches and dust

Package Contains:
1x 3.5inch Touch Screen LCD for Raspberry Pi (all versions)
1x Touch pen
1x Protection Case
3x Heat sinks
1x CD instruction

Note:
Raspberry Pi 3 Model B NOT Included
We have tutorials and software for you to download, please contact us
by email to get all information.

Quimat Display LCD con custodia protettiva e doppia scheda di espansione GPIO 20 pin doppia fila.
Supporta perfettamente Raspberry Pi 3/ 2, B/ B+ /A /A+ ,Evita ingombranti monitor HDMI.
Supporta Risoluzione in ingresso fino a 920*1080 e frequenza di aggiornamento fino a 60 fps, visuaizza con più chiarezza.
Fornisce una comoda interfaccia uomo-macchina per Raspberry Pi, in modo da fare Fai da Te in ogni momento e ovunque con una batteria portatile extra.
Per la scheda di estensione 20 pin doppia GPIO,12 pin saranno usati per la connessione della scheda Raspberry pi, i restanti Pin possono essere usati per componenti elettroniche come moduli sensore.

Caratteristiche:
1) Solo Raspbian,Kali e Ubuntu supportano display e funzioni touch contemporaneamente se avete installato un driver immagine personalizzato;
2) Solo Raspbian e Ubuntu supportano l'installazione del driver touch indipendentemente.
3) Solo supporta funzione Display (senza funzione touch): Raspbian,Kali,Ubuntu,Retropie,Pi Player,Windows10 etcc (Basta installare OS).

Contenuto del pacchetto
1x LCD 3.5 pollici Raspberry Pi con scheda di estensione 20 pin dual GPIO
1x Touch Pen
1x Convertitore HDMI - HDMI
1x CD istruzioni
1x Custodia Protettiva

NOTA: Scheda Raspberry Pi non inclusa.

Caratteristiche

Features

7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080)
Toughened glass capacitive touch panel, 6H hardness
Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers
When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
3.5mm audio jack, supports HDMI audio output
Also supports VGA input (specific cable is required and should be purchased separately)
High quality PC case, optional tilt angle: 30°/50°

FAQ
Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on,
it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

Download
Wiki : https://www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case)

Caratteristiche

Caratteristiche:
Materiale della cassa: PMMA
Dimensioni schermo: 8 pollici
Risoluzioni: 1280 x 800
contrasto: 800: 1
Luminosità: 400 nits
Rapporto d' aspetto: 16: 10
Superficie di visualizzazione: 173 x 110 mm (V/H)
Angolo di visualizzazione: 89/89/89/89 (L/R/V/H)
Potenza nominale: 6 - 7 W
Ingresso di segnale: HDMI (1080p, 720p, 480p)
Package
1 x scheda madre.
1 x cavo HDMI a HDMI gratuito (speciale progettato per Raspberry).
2 x Stand.
