raspberry pi 7 touchscreen lcd case

Caratteristiche

Binding	Personal computer
Brand	RASPBERRY PI
Color	black II
Label	OneNineDesign
Manufacturer	OneNineDesign
MPN	ART02312
Package Dimensions	Height: 433; Length: 1024; Weight: 110; Width: 709
Package Quantity	1
Part Number	ART02312
Product Group	Personal Computer
Product Type Name	TABLET_COMPUTER
Publisher	OneNineDesign
Size	Touchscreen & black case
Studio	OneNineDesign

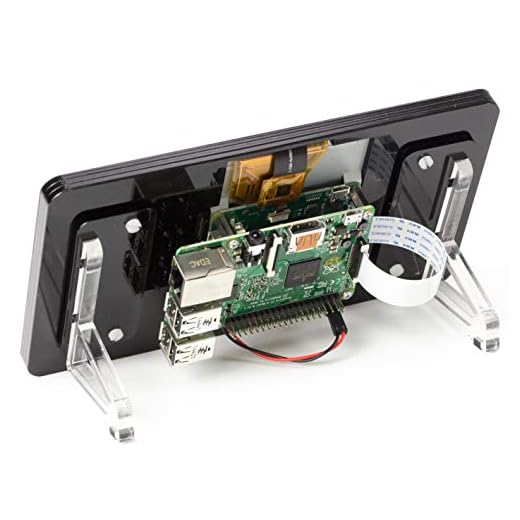

Title	Bundle Raspberry Pi 7" Touchscreen Display & Case [black]

Technical Specification: - 7" Touchscreen Display. - Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) - Viewable screen size: 155mm x 86mm - Screen Resolution 800 x 480 pixels - 10 finger capacitive touch. - Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port. - Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi. N.B. Will require the latest version of Raspbian OS to operate correctly. Features: The 7" Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi's GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi's.Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse. Kit Contents: - 7" Touchscreen Display - Adapter Board - DSI Ribbon cable - 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display - 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)

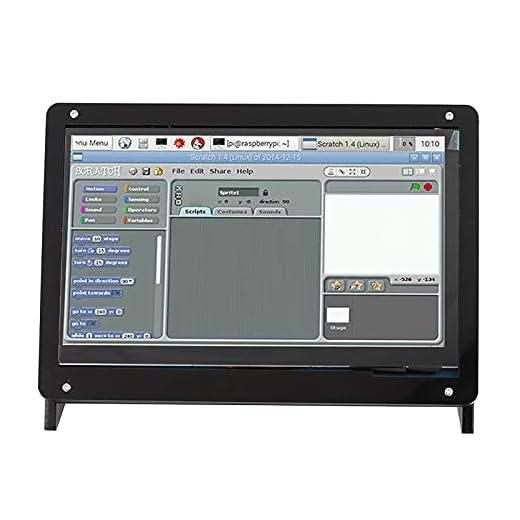

1024×600, 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

7inch HDMI LCD (C) Features

• Latest Version -IPS screen, wider viewing angle, more clear displaying, better touch effects, stronger anti-interference ability.
• Standard HID protocol, easy to be integrated into your system
• Adding the VCOM adjustable resistance and EMC circuit
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable;USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_ (C)?Amazon

Note

1.If the LCD flickering or has ghost problem , please check if the config file was configured correctly. Or adjust the potentiometer on the backside , and after the screen can display the desktop, rotate the resistor until it can get the best display of desktop.Then please leave the screen for a while,waiting for the ghost to disappear (may take several hours)

2. if there are some red lines on the edge of the screen,please adjust the config.txt file by adding [hdmi_drive=1] into the end of code.After that please power off the screen and put it aside for a few hours to avoid the flickers.

This 5 inch TFT display with touch function is a mini panel-mountable HDMI monitor. It's small and simple, and the shape makes it easy to attach to a electronic product. The touch screen resolution is 800x480 and it has large view angle. It is not only work with raspberry pi, also can work with all HDMI device, but the touch function just for raspbian and Ubuntu systems.
Features:
A good solution for those seeking for a bigger resolution display
Designed for Raspberry Pi, an ideal alternative solution for monitor
800×480 resolution, better display
Good touch response
Large viewing angle
Fast response time
For Raspberry Pi B+/2B Raspberry Pi 3B
With detail tutorial
Specifications:
5 inch TFT Resistive touch screen display, 800x480 Resolution
HDMI input
Usb touch and power, 5V
Lcd driver IC: ILI9486L
Refresh rate：60HZ
Lcd Size ：120mm*78mm
Package list:
5 inch Touch LCD Display x1
HDMI connector x1
Touch pen x1
Protective case x1

Features

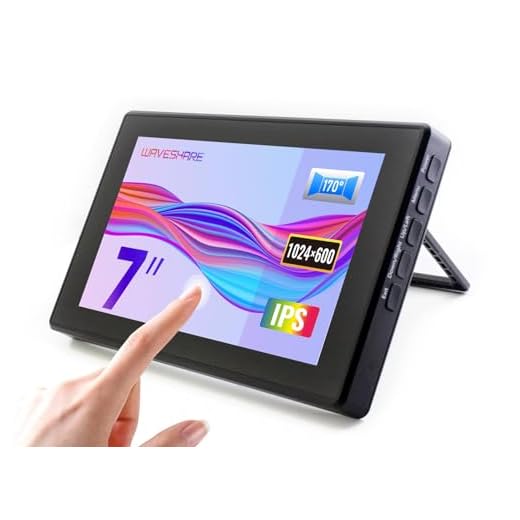

• 7inch IPS screen, capacitive touch screen LCD with toughened glass cover, 1024x600 hardware resolution, configurable by software (up to 1920x1080), displaying with high resolution picture, large viewing angle
• Toughened glass capacitive touch panel, 6H hardness;High quality PC case, optional tilt angle: 30°/50°

• Supports popular mini PCs such as Raspberry Pi,Jetson Nano,BB Black, Banana Pi, as well as general desktop computers ;
• When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• 3.5mm audio jack, supports HDMI audio output
• Also supports VGA input (specific cable is required and should be purchased separately)

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case)?Amazon

FAQ

1.What is the operating current of 7inch HDMI LCD (H)?

With 5V power input, it is about 750~850mA

2.Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.However, for the first testing, you may want to use our provided image directly.

Package Content

1. 7inch HDMI LCD (H) (with case) x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. Quick start sheet x1

Note:Detailed tutorials and information can be offered for free, contact us by email via Amazon to receive documents.

PACKAGE CONTENT
7inch HDMI LCD (C) x 1
HDMI cable x 1
USB type A plug to micro B plug cable x 1
RPi screws pack (4pcs) x 1

Rev2.1 Feature
Upgrade to IPS screen, wider viewing angle, more clear displaying
Standard HID protocol, easy to be integrated into your system
For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Supports Raspberry Pi
Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
Backlight can be turned off to lower power consumption

Why the LCD still doesn't work with the provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

Caratteristiche

Binding	Personal computer
Brand	RASPBERRY PI
Color	clear II
Label	OneNineDesign
Manufacturer	OneNineDesign
MPN	ART02314
Package Dimensions	Height: 441; Length: 992; Weight: 110; Width: 709
Package Quantity	1
Part Number	ART02314
Product Group	CE
Product Type Name	TABLET_COMPUTER
Publisher	OneNineDesign

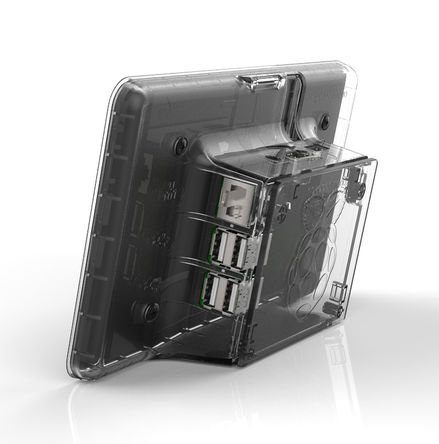

Size	Touchscreen & clear case
Studio	OneNineDesign
Title	Bundle Raspberry Pi 7" Touchscreen Display & Case [clear]

Features

7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080)

Toughened glass capacitive touch panel, 6H hardness

Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers

--When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
--When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

3.5mm audio jack, supports HDMI audio output

Also supports VGA input (specific cable is required and should be purchased separately)

High quality PC case, optional tilt angle: 30°/50°

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on,
it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.


PACKAGE CONTENT

Note: Raspberry pi in the picture not include
1. 7inch HDMI LCD (H) (with case) x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. Quick start sheet x1

PACKAGE CONTENT
7inch HDMI LCD (C) x 1
HDMI cable x 1
USB type A plug to micro B plug cable x 1
RPi screws pack (4pcs) x 1
Bicolor Case for 7inch LCD × 1
Screws Pack × 1

Rev2.1 Feature
Upgrade to IPS screen, wider viewing angle, more clear displaying
Standard HID protocol, easy to be integrated into your system
For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Supports Raspberry Pi
Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
Backlight can be turned off to lower power consumption

Why the LCD still doesn't work with the provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

3.5inch LCD panel description
Designed for Raspberry Pi, an ideal alternative solution for monitor
Supports any revision of Raspberry Pi (directly-pluggable)
Driver provided (works with custom Raspbian directly)
320×480 resolution, better display
Supports Raspbian system, enables your system
play videos (supports multi formats, MP4 and so on)
take photos by touch pen (up to 17 camera modes)
Support software keyboard (system interaction without keyboard/mouse)

Key Parameters
LCD Interface: SPI
LCD Type: TFT
Backlight: LED
Colors: 65536
Aspect Ratio : 8:5
Resolution: 320*480 DOTS
Power Consumption: TBD
Backlight Current: TBD

Protection Case with 3x Heat sinks
Designed SPECIALLY for Raspberry Pi 3 Model B; Full access to all controls and features
The protective case consists of five-piece PMMA enclosure that snaps together around Raspberry Pi
3 Model B，Provides the best available protection/accessibility for Model B，Protect and secure
your Raspberry Pi from shocks, scratches and dust

Package Contains:
1x 3.5inch Touch Screen LCD for Raspberry Pi (all versions)
1x Touch pen
1x Protection Case
3x Heat sinks
1x CD instruction

Note:
Raspberry Pi 3 Model B NOT Included
We have tutorials and software for you to download, please contact us
by email to get all information.
