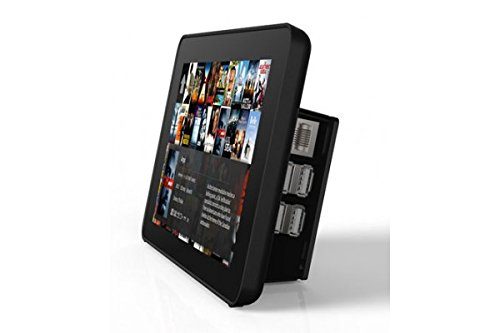

raspberry pi lcd touch screen case black

Caratteristiche

Binding	Personal computer
Brand	RASPBERRY PI
Color	black II
Label	OneNineDesign
Manufacturer	OneNineDesign
MPN	ART02312
Package Dimensions	Height: 433; Length: 1024; Weight: 110; Width: 709
Package Quantity	1
Part Number	ART02312
Product Group	Personal Computer
Product Type Name	TABLET_COMPUTER
Publisher	OneNineDesign
Size	Touchscreen & black case
Studio	OneNineDesign
Title	Bundle Raspberry Pi 7" Touchscreen Display & Case [black]

1024×600, 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

7inch HDMI LCD (C) Features

• Latest Version -IPS screen, wider viewing angle, more clear displaying, better touch effects, stronger anti-interference ability.
• Standard HID protocol, easy to be integrated into your system
• Adding the VCOM adjustable resistance and EMC circuit
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable;USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_ (C)?Amazon

Note

1.If the LCD flickering or has ghost problem , please check if the config file was configured correctly. Or adjust the potentiometer on the backside , and after the screen can display the desktop, rotate the resistor until it can get the best display of desktop.Then please leave the screen for a while,waiting for the ghost to disappear (may take several hours)

2. if there are some red lines on the edge of the screen,please adjust the config.txt file by adding [hdmi_drive=1] into the end of code.After that please power off the screen and put it aside for a few hours to avoid the flickers.

Features

• 7inch IPS screen, capacitive touch screen LCD with toughened glass cover, 1024x600 hardware resolution, configurable by software (up to 1920x1080), displaying with high resolution picture, large viewing angle
• Toughened glass capacitive touch panel, 6H hardness;High quality PC case, optional tilt angle: 30°/50°

• Supports popular mini PCs such as Raspberry Pi,Jetson Nano,BB Black, Banana Pi, as well as general desktop computers ;
• When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• 3.5mm audio jack, supports HDMI audio output
• Also supports VGA input (specific cable is required and should be purchased separately)

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case)?Amazon

FAQ

1.What is the operating current of 7inch HDMI LCD (H)?

With 5V power input, it is about 750~850mA

2.Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.However, for the first testing, you may want to use our provided image directly.

Package Content

1. 7inch HDMI LCD (H) (with case) x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. Quick start sheet x1

Note:Detailed tutorials and information can be offered for free, contact us by email via Amazon to receive documents.

The LCD

800x480, 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

The Case

• Material : high quality bicolor Acrylic, black and white
• Comes with bottom holder, optional tilt angle, 45°or 60°
• Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+, Banana Pi, and BB Black

Development Resources

Wiki :www.waveshare.com/wiki/7inch_HDMI_LCD_(B)?Amazon

Package Content

1. 7inch HDMI LCD (B) x 1
2. HDMI cable x 1
3. USB type A plug to micro B plug cable x 1
4. RPi screws pack (4pcs) x 1
5. Bicolor Case for 7inch LCD x 1
6. Screws Pack x 1
7. Quick start sheet x1

FAQ

1.Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

2.Why the LCD still doesn't work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.

Make sure the image in TF card is burnt correctly.

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Caratteristiche

Binding	Personal computer
Brand	RASPBERRY PI
Color	clear II
Label	OneNineDesign
Manufacturer	OneNineDesign
MPN	ART02314
Package Dimensions	Height: 441; Length: 992; Weight: 110; Width: 709
Package Quantity	1
Part Number	ART02314
Product Group	CE
Product Type Name	TABLET_COMPUTER
Publisher	OneNineDesign
Size	Touchscreen & clear case
Studio	OneNineDesign
Title	Bundle Raspberry Pi 7" Touchscreen Display & Case [clear]

The Case Feature

Material : high quality bicolor Acrylic, black and white

Comes with bottom holder, optional tilt angle, 45° or 60°

Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+, Banana Pi, and BB Black

PACKAGE CONTENT

1. 7inch HDMI LCD (C) x 1
2. HDMI cable x 1
3. HDMI to Micro HDMI Adapter x 1
4. USB type A plug to micro B plug cable x 1
5. RPi screws pack (4pcs) x 1
6. Bicolor Case for 7inch LCD x 1
7. Screws Pack x 1
8. Quick start sheet x1


FAQ


Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.
100% original from Waveshare, support technical service, please contact us!

Features

7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080)

Toughened glass capacitive touch panel, 6H hardness

Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers

--When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
--When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

3.5mm audio jack, supports HDMI audio output

Also supports VGA input (specific cable is required and should be purchased separately)

High quality PC case, optional tilt angle: 30°/50°

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on,
it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.


PACKAGE CONTENT

Note: Raspberry pi in the picture not include
1. 7inch HDMI LCD (H) (with case) x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. Quick start sheet x1

Caratteristiche

Binding	Personal computer
Brand	RASPBERRY PI
Color	white II
Label	OneNineDesign
Manufacturer	OneNineDesign
MPN	ART02313
Package Dimensions	Height: 472; Length: 945; Weight: 132; Width: 748
Package Quantity	1
Part Number	ART02313
Product Group	CE
Product Type Name	TABLET_COMPUTER
Publisher	OneNineDesign
Size	Touchscreen & white case
Studio	OneNineDesign
Title	Bundle Raspberry Pi 7" Touchscreen Display & Case [white]

FAQ

Why the LCD doesn't work with my Raspbian?
-To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

-Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep

-Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

PACKAGE

-13.3inch HDMI LCD (H) (with case) 1
-Power adapter 12V 1
-HDMI cable 1
-USB type A plug to micro B plug cable 1
-DVD 1

The Touch Screen cases from RS Pro are designed to house your Raspberry Pi board and the Raspberry Pi 7" LCD Touch Screen. The cases provide protection to the board and the display. The case also acts as a bezel to the display, improving its appearance while housing the board neatly behind it. Features and Benefits Renders the touch screen and Pi board portable Cut-outs for all connections Camera board connector slot Wall mount features Four screw fixings supplied for attachment to the touch screen Easy clip rear cover to protect/access all internal connectors Note Raspberry Pi board and Raspberry Pi LCD Touch Screen sold separately. Specifications For Use With: Raspberry Pi 2 B, Raspberry Pi 3 B, Raspberry Pi B+, Raspberry Pi LCD Touch Screen Colour: Black External Dimensions: 197.12 x 46.76 x 115.64mm Body Material: ABS Cut-Out Type: Camera, HDMI Documents Raspberry Pi Touchscreen Case Assembly Instructions Raspberry Pi Touch Screen Technical Drawing Dimensional Drawing RS Pro Datasheet
