Raspberry Pi LCD Touchscreen Case [white]

Caratteristiche

Caratteristiche

1024×600, 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

7inch HDMI LCD (C) Features

• Latest Version -IPS screen, wider viewing angle, more clear displaying, better touch effects, stronger anti-interference ability.
• Standard HID protocol, easy to be integrated into your system
• Adding the VCOM adjustable resistance and EMC circuit
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:

Raspberry Pi Zero: HDMI cable;USB-type-A-receptacle-to-Micro-B-plug-cable

BB Black: HDMI cable

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_ (C)?Amazon

Note

1.If the LCD flickering or has ghost problem , please check if the config file was configured correctly. Or adjust the potentiometer on the backside , and after the screen can display the desktop, rotate the resistor until it can get the best display of desktop.Then please leave the screen for a while,waiting for the ghost to disappear (may take several hours)

2. if there are some red lines on the edge of the screen,please adjust the config.txt file by adding [hdmi_drive=1] into the end of code.After that please power off the screen and put it aside for a few hours to avoid the flickers.

3.5inch LCD panel description
Designed for Raspberry Pi, an ideal alternative solution for monitor
Supports any revision of Raspberry Pi (directly-pluggable)
Driver provided (works with custom Raspbian directly)
320×480 resolution, better display
Supports Raspbian system, enables your system
play videos (supports multi formats, MP4 and so on)
take photos by touch pen (up to 17 camera modes)
Support software keyboard (system interaction without keyboard/mouse)

Key Parameters
LCD Interface: SPI
LCD Type: TFT
Backlight: LED
Colors: 65536
Aspect Ratio : 8:5
Resolution: 320*480 DOTS
Power Consumption: TBD
Backlight Current: TBD

Protection Case with 3x Heat sinks
Designed SPECIALLY for Raspberry Pi 3 Model B; Full access to all controls and features
The protective case consists of five-piece PMMA enclosure that snaps together around Raspberry Pi
3 Model B，Provides the best available protection/accessibility for Model B，Protect and secure
your Raspberry Pi from shocks, scratches and dust

Package Contains:
1x 3.5inch Touch Screen LCD for Raspberry Pi (all versions)
1x Touch pen
1x Protection Case
3x Heat sinks
1x CD instruction

Note:
Raspberry Pi 3 Model B NOT Included
We have tutorials and software for you to download, please contact us
by email to get all information.

This is a 5 inch HDMI display designed for the Raspberry Pi, BB Black and general desktop computers, with 800x480 resolution and resistive touch screen. Moreover, this display also comes with corresponding size case.

If you need an HDMI display that can be used in your DIY project and wish it to be compatible with your Raspberry Pi or Banana Pi, then it will be your best choice.

FEATURE

5 inch HDMI LCD
- 800x480 high hardware resolution; Resistive touch control.
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers.
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free.
- When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free.
- Backlight can be turned off to lower power consumption.

The Acrylic Case
- Material : high quality bicolor Acrylic, black and white.
- Comes with bottom holder, optional tilt angle, 45 or 60 degree.
- Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+, Banana Pro.

NOTE

- To work with Raspberry Pi Zero, another HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable are required.
- To work with BB Black, another HDMI cable is required.

DISTRIBUTION LIST

1 * 5 inch HDMI LCD (CQ-B)
1 * HDMI cable
1 * USB type A plug to micro B plug cable
1 * Touch pen
1 * Raspberry Pi screws pack (4pcs)
1 * Bicolor Case
1 * Screws Pack
1 * Quick start sheet

Features:

Upgrade to IPS screen, wider viewing angle, more clear displaying
Support Raspberry Pi 3B+
Standard HID protocol, easy to be integrated into your system
For the Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

Delivery list

5 inch HDMI LCD * 1
HDMI cable * 1
Touch pen * 1
USB type A plug to micro B plug cable * 1
RPi LCD screws pack (4pcs) * 1
Bicolor Case for 5inch LCD Type B * 1
Screws Pack * 1.

Overview

This is a case and bottom holder which is designed for 5 inch capacitive touch screen LCD. It will combines the LCD and supported mini-PC into an All-in-one device.The Raspberry Pi B/A+/B+/2B/3B, Banana Pi, and BB Black is compatible with it.

Specification

-Color: black and white
-Size: for 5 inches
-Weight: 0.07 kg

Shipping List

-Bicolor Case for 5inch LCD Type B *1
-Screws Pack *1

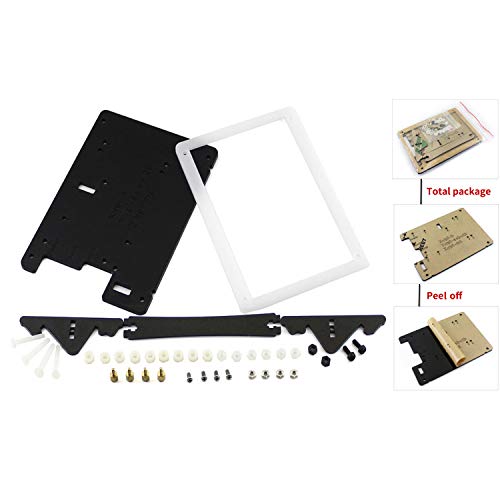

This black and white bicolor Acrylic case is designed for 5 inch HDMI LCD, Compatible with Raspberry Pi A+/B+/2B/3B/3B+. This case will combines the touch screen LCD and Pi into an All-in-one device.

FEATURE

- For use with : 5 inch HDMI LCD.
- Material : high quality bicolor Acrylic, black and white.
- Comes with bottom holder, optional tilt angle, 45 or 60 degree.
- Features mounting holes for Raspberry Pi A+/B+/2B/3B/3B+.

NOTE

The LCD and Pi are NOT included.

DISTRIBUTION LIST

1 * Bicolor Case for 5 inch LCD
1 * Screws Pack

This black and white bicolor Acrylic case is designed for 7 inch HDMI LCD, Compatible with Raspberry Pi A+/B+/2B/3B/3B+, Banana Pro and BB Black. This case will combines the touch screen LCD and Pi into an All-in-one device.

FEATURE

- Material : high quality bicolor Acrylic, black and white.
- Comes with bottom holder, optional tilt angle, 45 or 60 degree.
- Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+, Banana Pi, and BB Black.

NOTE

The LCD and Pi are NOT included.

DISTRIBUTION LIST

1 * Bicolor Case for 7 inch LCD
1 * Screws Pack

Why You Need It?

The 2.8 inch touch LCD shield is specifically designed for Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO.

TIPS

-When using the Arduino board with ICSP interface, the jumpers SB1, SB2 and SB3 on the LCD module should be kept open.

-When using the Arduino board without ICSP interface, the jumpers SB1, SB2 and SB3 on the module should be connected with a 0R resistor, respectively.

SPECIFICATIONS

-LCD Type: TFT
-LCD Interface : SPI
-LCD Controller: HX8347D
-Touch Screen Type: Resistive
-Touch Screen Controller: XPT2046
-Colors: RGB, 65K colors
-Resolution: 320x240 (Pixel)
-Display Size: 57.6mm¡Á43.2mm
-Outline Dimension: 73.3mm¡Á55.3mm
-I/O Voltage: 3.3V/5V

PACKAGE

-2.8inch TFT Touch Shield 1
