SunFounder Raspberry Pi Smart Video Car Kit V2.0 Block Based Graphical Visual Programming Language Remote Control by UI on Windows Mac And Web Browser Electronic Toy with Detail Manual
99,98€
disponibile
1 nuovo
da 99,98€
Spedizione gratuita
al 28 Gennaio 2020 10:53
Caratteristiche
- STEM LEARNING KIT - Perfect choice for beginners to learn Raspberry Pi (not included), robotics, electronics and program.
- IMAGE TRANSMISSION - Wide-angle USB webcam to real-time image/video transmission.
- EASILY CODING - You can learn how to code faster and easier than ever with a visual programming language software or Python code.
- REMOTE CONTROL - Remote control with the UI on PC or on a web browser (mobiles, tablets...)
- FUN FOR EVERYONE - The PiCar-V is a fun way for children and parents working together to build and use.
Introduction
The PiCar-V is an open source robot learning kit compatible with Raspberry Pi model B+, 2 model B ,3 model B and 3 model B+.
Equipped with a wide-angle USB webcam, it is powerful together with three whole new circuit boards and less but simpler wiring.
Some acrylic plates in a well-designed structure, and complete code suitable for almost all platforms to control the car.
Python code is provided for the car, and you can also program and debug it with Dragit, a Snap-based graphical interface, by just simple dragging and dropping the code blocks for complex functions.
There are many ways to control the robot remotely: with the app on PC (works on any OS), you can control the car and the cam's direction on the UI and view the image it takes in real time; or, with the related code, realize the same functions on a web browser, means it can works with any mobile phones, tablets, etc.
Package Included
1 * Robot HATS
1 * PCA9685 PWM Driver
1 * TB6612 Motor Driver
1 * 2x18650 Battery Holder
2 * DC Gear Motor
3 * SunFounder SF0180 Servo
1 * 120° Wide-angle USB Camera
2 * Rear Wheel
2 * Front Wheel
1 * USB Wi-Fi Adapter
1 * Ribbon (30cm)
1 * Cross Screwdriver
1 * Cross Socket Wrench
1 * M2.5/M4 Small Wrench
1 * M2/M3 Small Wrench
Several wires
Needed screws, nuts, and standoffs
SUNFOUNDER Raspberry Pi Smart Robot Car Kit - PiCar-S Block Based Graphical Visual Programming Language Line Following Ultrasonic Sensor Light Following Module Electronic Toy with Detail Manual
99,99€
89,99€
disponibile
1 nuovo
da 89,99€
Spedizione gratuita
al 28 Gennaio 2020 10:53
Caratteristiche
- STEM LEARNING KIT - A complete learning kit based on Raspberry Pi. It's fun to assemble it. But Raspberry Pi is not included.
- EASILY CODING- Python code: great for web development; Dragit: base on Snap!, fun and simple GUI programming.
- VARIOUS SENSORS-Comes with three sensor modules including ultrasonic obstacle avoidance, light follower, and line follower.
- EASY OPERATION - Elaborately-written user manual and published video for you to easy build your own video car.
- FUN FOR EVERYONE- The PiCar-S is a fun way for children and parents working together to build and use.
Feature:
The Pi Car-S is a cool smart car that can work with Raspberry Pi model B+, 2 model B ,3 model B and 3 model B+.
With three sensor modules including ultrasonic obstacle avoidance, light follower, and line follower, you can better learn the programming on how to control the car.
Some constructure plates in a well-designed structure, unbreakable, durable and shatterproof. Updated with high performance 9g servo motors which confirm good quality.
Python code is provided for the car, and you can also program and debug it with Dragit, a Snap-based graphical interface, by just simple dragging and dropping the code blocks for more complex functions.
Package List:
1 Set x Acrylic Plate
1 * Robot HATS
1 * PCA9685 PWM Driver
1 * TB6612 Motor Driver
1 * 5-CH Line Follower Module
1 * Ultrasonic Obstacle Avoidance Module
1 * Light Follower Module
2 * 18650 Battery Holder
2 * DC Gear Motor
1 * SunFounder SF0180 Servo
2 * Rear Wheel
2 * Front Wheel
1 * USB Wi-Fi Adapter
1 * Ribbon (30cm)
1 * Cross Screwdriver
1 * Cross Socket Wrench
1 * M2.5/M4 Small Wrench
1 * M2/M3 Small Wrench
Several wires
Needed screws, nuts, and standoffs

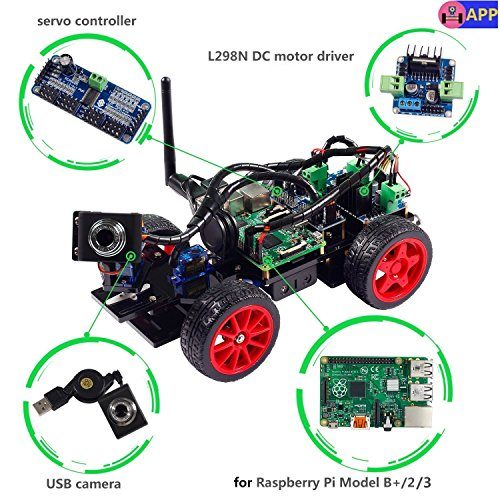

Smart Video Car Kit for Raspberry Pi with Android App, Compatible with RPi 3, 2 and RPi 1 Model B+ (Pi Not Included)
non disponibile
Spedizione gratuita
al 28 Gennaio 2020 10:53
Caratteristiche
- Un kit di apprendimento video per la costruzione di un robot open source su Raspberry Pi (il PI non è incluso).
- Una webcam USB per la trasmissione di immagini/video in tempo reale.
- Può essere telecomandato con una app Android o eseguendo un programma client TCP sul PC
- Codice Python: completamente open source e facile da imparare.
- Struttura ben progettata con un'attenzione particolare all'estetica e funzioni multiple il tutto in un'unica auto.
This smart video car is a great kit to get started with robot. We provide multiple parts, instructions and code needed, so you can assemble them by yourself, with the help of the user guide and thus enjoy the fun of making!
The car control can be realized on a PC with Linux system, or you may also apply it in a Linux virtual machine.
In this kit, MJPG-streamer is applied for image capturing and video transmission in a real-time manner. You may view the video by web browser on any device. Firefox and Google Chrome are recommended.
Component List
1 pack x Acrylic plates
1 pack x Threaded fasteners
1 x Tower Pro Micro Servo SG90
2 x Gear Reducer
2 x Driven wheel
2 x Active wheel
1 x 16-Channel 12-bit PWM driver
1 x L298N DC Motor Driver Module
1 x Step-down DC-DC Converter Module
1 x USB Wi-Fi Adapter
1 x USB Camera
1 x Dual 18650 battery holder
1 x Ribbon
1 x USB Cable
Serval Dupont Wires
1 x Screwdriver
1 x Cross Socket Wrench
Self-provided Parts
1 x Raspberry Pi Model B+
2 x 18650 Rechargeable Li-ion Battery (3.7V) without protection circuit board
1 x TF-card
Note: The materials are not provided with a CD any more. You may find them at
https://www.sunfounder.com/learn/category/Smart-Video-Car-for-Raspberry-Pi.html
