Parameters:
1. Use voltage: DC5V
2. Quiescent current: less than 2mA
3. level output: high 5V low 0V
5. Induction angle: no more than 15 degrees
6. Detection range: 0.78~196 in/ (2cm~500cm)
7. High accuracy: up to 0.12 in/(0.3 cm)
8. Connection mode: VCC, trig (control), echo (receiving end), GND ground wire

Module working principle:
Pull the Trig pin to high level for more than 10us impulse, the module start ranging.
The module automatically sends eight 40KHz square wave to detect whether a signal is returned.
Finished ranging, If you find an object in front, Echo pin will be high level, and based on the different distance, it will take the different duration of high level.
So we can calculated the distance easily.The distance = ((Duration of high level)*(Sonic :340m/s))/2
Dimensions: 1.3 x 0.4 x 0.1 inch/3.03 x 1 x 0.25 cm (L*W*H)

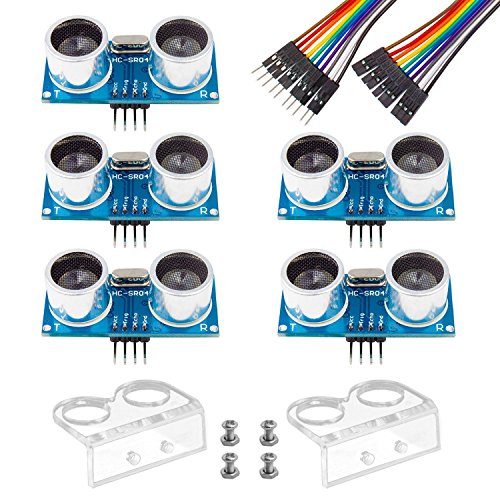

Package included:
1) HC-SR04 Distance Sensor x5
2) Cartoon Mounting Bracket(Support HC-SR04 only) x2
